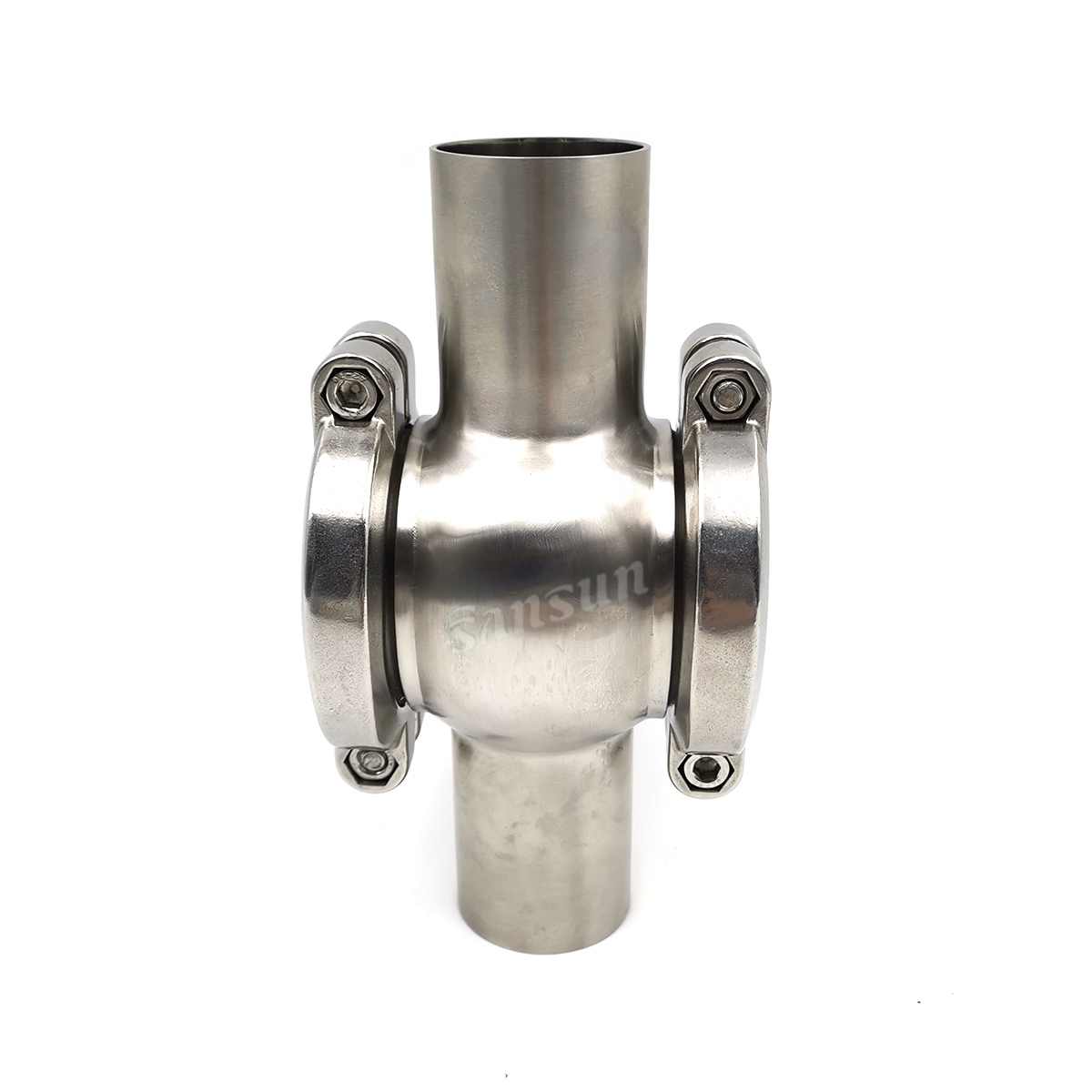

304 hygienisches Schweißkreuzpipeline Sehglas

The stainless steel four-way sight glass is a sight glass that can be observed on both sides, which is generally used to install on a three-way pipe, which saves costs and is convenient for observation. Like other straight sight glass, it can clearly see the flow of the medium between the main pipe and the branch pipe to ensure its safe production
Größe:
Verfügbarkeitsstatus:
Menge:
  • SANSUN

Application

union type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.

For it is convenient to view the condition of equipment running state and system work state.

Materials

Body Materials: AISI-304 or AISI-316L

Tempered glass

Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

Available in size from 1"-4", DN25-DN100 or others upon requirement

Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

End connections: butt-welded, sanitary clamp, or others upon request

Vertical or horizontal installation

Technical Specification

Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

Surface treatment: CNC machining

Inspection

All kinds of non-standard products are customized according to the requirements of customers.

Products can be traced back to the manufacturing and time of each process to ensure the quality of products.

sansun-factory-workshop-china-manufactuer-laser-marking (2)



304 hygienic welding cross pipeline sight glass

1.Our Company


sansun-factory

Wenzhou Sansun stainless Co., Ltd. Was founded in 2013, Located in Wenzhou, China, is a professional manufacturer integrating design,production, sales and service.

Our products includes: Sanitary valve,Sanitary pipe fittings,Sanitary,pump,Tank accessories, etc.

All kinds of non-standard products are customized according to the requirements of customers.Products can be traced back to the manufacturing and time of each process to ensure the quality of products.




2.Factory Environment

CNC Center




3.Factory Strength


Factory Square Meter 3000 m3

Workshop Equipment

10--Mazak CNC Machine
6--HEADMAN CNC Machine
1--of automatic CNC center

4--plain lathe

4--Press Machine

3--bending Machine

2--Cutting Machine

2-- Chamfering Machine

10--Polishing Machine

2--Laser marking Machine

Number of employees 105 Workers + 10 officers
Number of Engineers 3 designers +2 CAD drawers
Number of Inspectors

Raw Material (3)

Finish Product (5)

Testing Equipment

2--Pressure Testing Machine

1--Surface roughness device

2--Spectro Instrument Gun
